Model:ZL6010
3-way diverting valve

Function
These are compact diverting brass valves for use in small and medium sized heating and cooling installations.

Technical data
Working Temperature:－10°~110 ℃
Working Pressure :10bar
Media:water, glycol < 50%
Max. diff. pressure:1 bar
Leakage (Δ p=1 bar):max. 0,2% Kvs

Material
Valve body: Brass, CW617N
Shaft and rotor: Brass, CW617N
Bushing: PTFE
O-Rings: EPDM,FKM

Three types of connections :
internal threads DN15,DN20,DN25,DN32,DN40,DN50

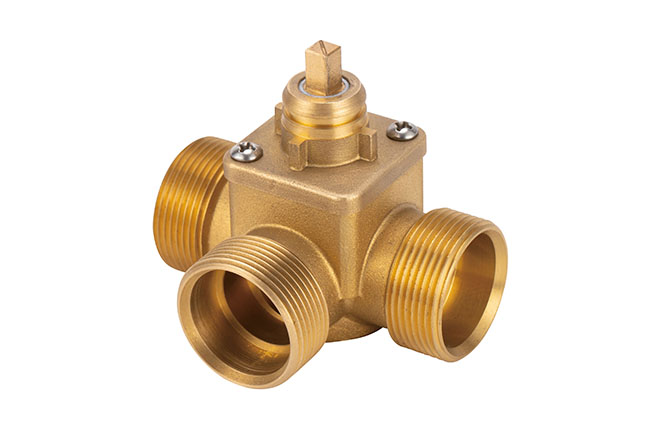

external thread DN20,DN25,DN32,DN40

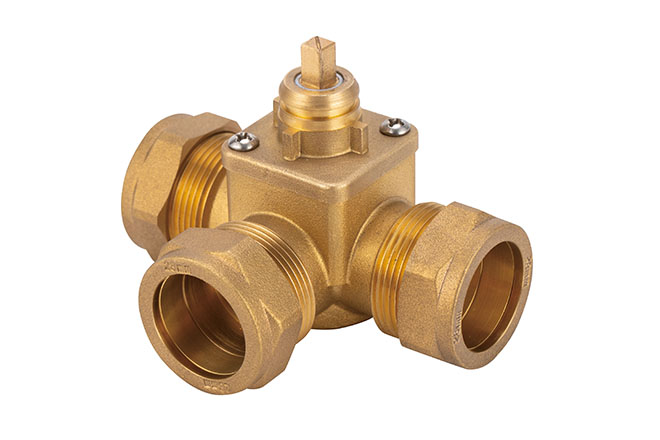

compression fittings  DN20,DN25
