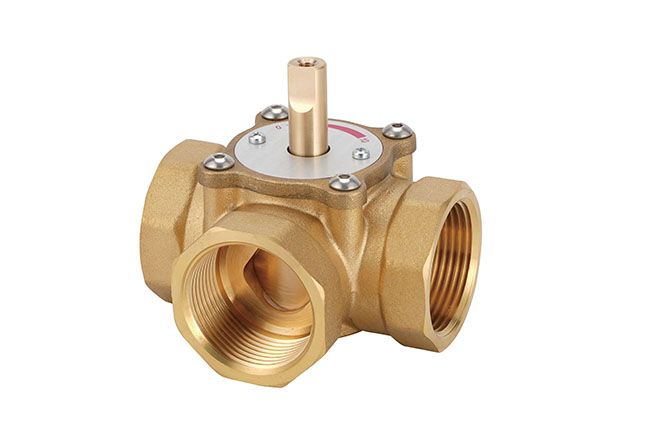

Model:ZL6000
3-way mixing valve

Function
These are compact brass valves for use in small and medium sized heating and cooling installations, e.g. radiator, underfloor, radiant panel, mixing circuits, plant room, heat pumps, HVAC systems and in solar heating systems.

Technical data
Working Temperature: －10°~110 ℃
Working Pressure: 10bar
Media: water, glycol < 50%
Max. diff. pressure: 1 bar
Leakage (Δ p=1 bar): max. 0,5% Kvs

Material
Valve body: Brass, CW617N
Shaft and rotor: Brass, CW617N
Bushing: PTFE
O-Rings: EPDM,FKM

Three types of connections :
internal threads DN15,DN20,DN25,DN32,DN40,DN50
external thread DN20,DN25,DN32,DN40
compression fittings  DN20,DN25
