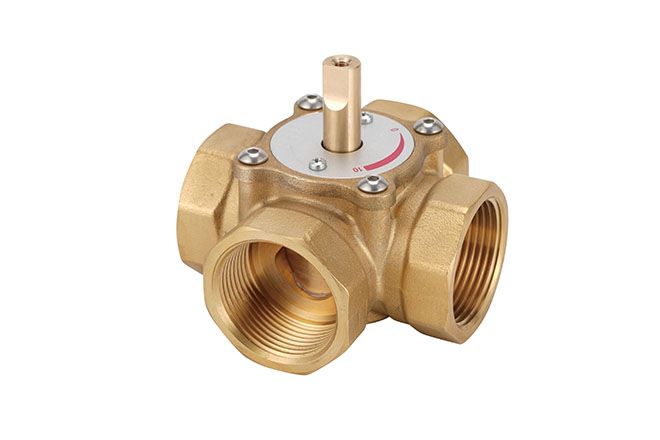

4-way mixing valve (ZL6004)
Model:ZL6004
4-way mixing valve
Function
This kind of Valves are for use in small and medium sized heating and cooling installations.
Technical data
Working Temperature: －10°~110 ℃
Working Pressure : 10bar
Media: water, glycol < 50%
Max. diff. pressure: 1 bar
Leakage (Δ p=1 bar): max. 0,5% Kvs
Material
Valve body: Brass, CW617N
Shaft and rotor: Brass, CW617N
Bushing: PTFE
O-Rings: EPDM,FKM
Types of connections :
internal threads DN15,DN20,DN25,DN32
4-way mixing valve
Function
This kind of Valves are for use in small and medium sized heating and cooling installations.
Technical data
Working Temperature: －10°~110 ℃
Working Pressure : 10bar
Media: water, glycol < 50%
Max. diff. pressure: 1 bar
Leakage (Δ p=1 bar): max. 0,5% Kvs
Material
Valve body: Brass, CW617N
Shaft and rotor: Brass, CW617N
Bushing: PTFE
O-Rings: EPDM,FKM
Types of connections :
internal threads DN15,DN20,DN25,DN32
