Technical data

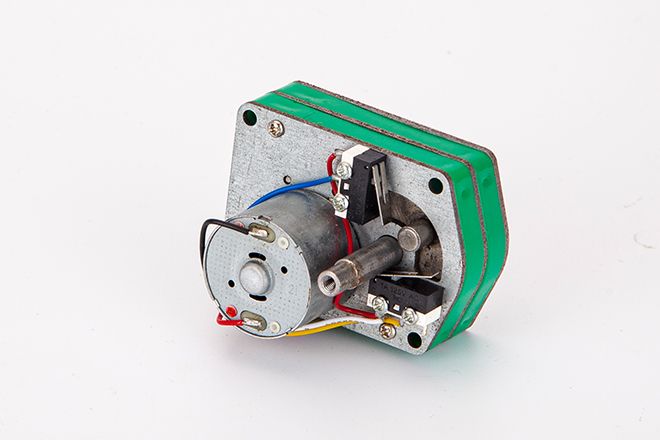

Model No. : ZL-SZTB6500-1(Manual automatic integration)

Motor specification: JXDRF 300 - 12400

Rated operating voltage: D/V 3.6V

Operating voltage range: 2V~4.5V (The higher the voltage, the greater the torque)

Operating current at no load at rated operating voltage: ≈20mA (At normal temperature)

Blocking current at rated operating voltage: ≈350mA（±50mA）

Output torque at rated operating voltage: ≈6.5N.M（±0.5n.m）

On (off) time at stable operating voltage: ≈20S

Gear reduction ratio: 6500:1

Waterproof  level: No
