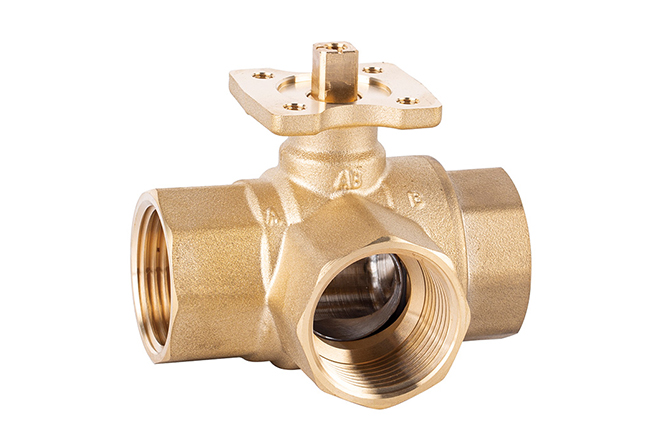

3-way brass ball valves (ZL3300)
Product Name:3-way brass ball valves
Model No.:ZL3300

Function:

This ball valves are used as control valves for HVAC applications (for use in heat pumps, small central heating systems, solar systems, district heating etc.), drinking water installations, irrigation installations etc.


Material:
Valve body: Brass, CW617N
Ball: Brass, CW617N
Seals: PTFE, EPDM, FKM

Technical Data:
Medium: water, glycol < 50%,
Media temperature: min. 2°C ; max. +90°C
Max leakage: rate B according to EN 12266-1:2003
Connection: external thread DN20,DN25,DN32

3-way brass ball valves (ZL3300)
