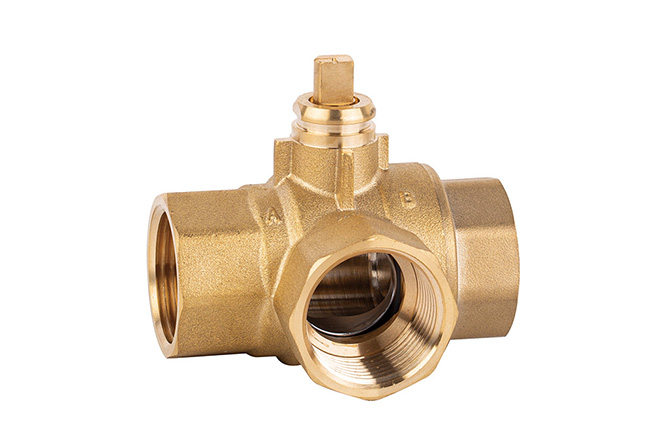

3-way brass ball valves-L ball (ZL3100L)
Product Name:3-way brass ball valves-L ball
Model No.:ZL3100L
Material:
Valve body: Brass, CW617N
Ball: Brass, CW617N
Seals: PTFE, EPDM, FKM
Technical Data:
Medium: water, glycol < 50%,
Media temperature: min. 2°C ; max. +90°C
Connection: internal thread DN20,DN25,DN32
Model No.:ZL3100L
Function:

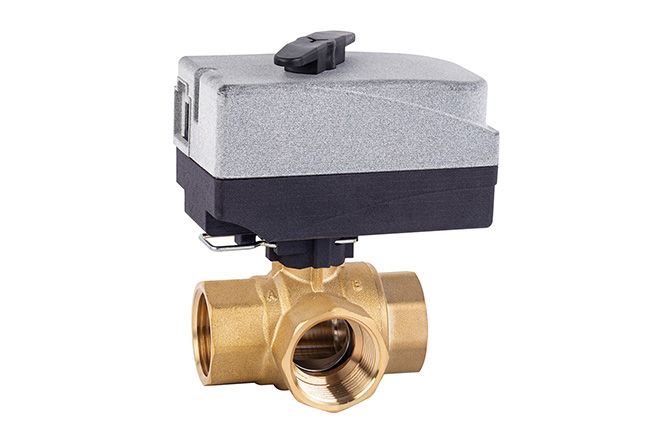

This ball valves are used as control valves for HVAC applications (for use in heat pumps, small central heating systems, solar systems, district heating etc.), drinking water installations, irrigation installations etc.
Material:
Valve body: Brass, CW617N
Ball: Brass, CW617N
Seals: PTFE, EPDM, FKM
Technical Data:
Medium: water, glycol < 50%,
Media temperature: min. 2°C ; max. +90°C
Connection: internal thread DN20,DN25,DN32
